RC Battery

Melasta produce a wide variety of LIPO and Ni-MH RC toys battery packs. Melasta has a special research unit to work on the improvement of RC toys batteries. These are the features of Melasta RC car Batteries

1.Wide Temperature ranges -50 ℃~50 ℃ or -20 ℃~80 ℃.
2. Low temperature with Operating temperature from -50℃ to 50℃.
3. Higher Capacity with smaller size.
4. Quick Charge batteries with charge rate up to 5C.
5. High drain batteries with 150C pulse, 90C discharge for 2 seconds, 45C continuous discharge rate.
6. Standard battery size for multiple brands

Melasta RC LiPO batteries offer the ultimate in power and runtime compared with NiMH batteries. We are the first in the Chinese industry to overcome technical difficult and produce thin, light and high-powered battery products since the breakthrough discovery of the lithium polymer battery in 2010. Melasta Li-polymer battery meets all performance standards of Formula SAE and has been recognized as the first choice and frequently adopted into international racing teams since 2010.

Melasta RC Battery Advantages

1.Trusted Performance
Melasta has been trusted by famous SAE formula student racing teams for its performance since 2010. You can reply on Melasta batteries while participating in Racing competition.

2. Pair with Popular Models
Our hobby battery pack works with most popular applications such as Traxxas, LOSI, Associated, HPI, Kyosho and Tamiya brands but also RC Tanks, RC Truck and Boats, PX-16 Boat, Grasshopper RC Cars, RC10 Gold Pan, Recat Rockslide crawler and the branded Radio Shack RC Car. Use our high power packs that deliver the best for your electrical applications.

3.High Output
Melasta specialized for the UAV & UAS market. Our batteries provide high output to make your product perfect.

4.Longer Lasting Battery

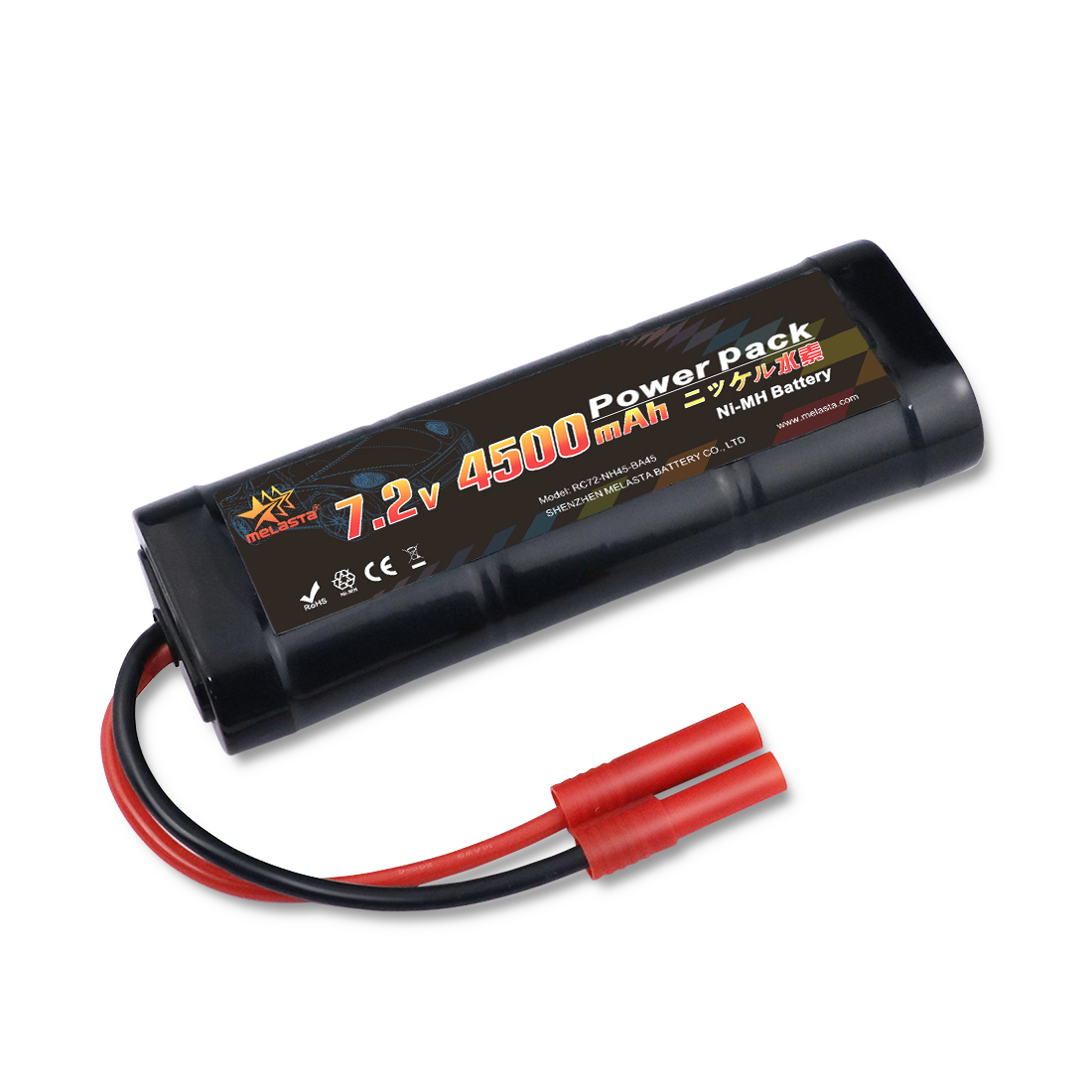

Our Rechargeable LiPO and NiMH Battery Pack has no memory effect so that you can charge your batteries anytime. Even when they are close to full or partially drained.

Melasta Available LIPO Battery Model’s Description

Item No.

Model Number

Voltage (V)

Capacity (mAh)

Discharge rate (C)

Dimensions (mm)

Connector

1

RC74-LP52-XT50

7.4

5200

25C

T25xW46xL138mm

Customized

2

RC74-LP52-DT50

7.4

5200

25C

T25xW46xL138mm

Customized

3

RC11-LP15-XT40

11.1

1500

20C

T26.5x W37 x L72mm

Customized

4

RC11-LP15-DT40

11.1

1500

20C

T26.5x W37 x L72mm

Customized

5

RC11-LP25-EC50

11.1

2500

25C

D28xW36xL105mm

Customized

6

RC11-LP22-EC50

11.1

2200

25C

T23.5xW35xL108mm

Customized

7

RC11-LP22-DT50

11.1

2200

25C

T24xW36xL106mm

Customized

8

RC11-LP22-XT50

11.1

2200

25C

T24xW35xL108mm

Customized

9

RC11-LP25-XT50

11.1

2500

25C

25mm*35mm*106mm

Customized

10

RC11-LP50-DT70

11.1

5000

35C

Customized

11

RC14-LP15-XT50

14.8

1500

25C

T35 x W37 xL72 mm

Customized

12

RC14-LP22-DT50

14.8

2200

25C

T31 x W35 xL108 mm

Customized

13

RC14-LP22-XT50

14.8

2200

25C

T32 x W34.5 x L108 mm

Customized

14

RC14-LP50-XT60

14.8

5000

30C

33mm*46mm*160mm

Customized

Melasta Lithium Polymer (Li-Po) Battery Specification

Technical Specification

Cell Model: LPB9043128-3S1P (11.1V, 5000mAh,70C)
These are the technical specification of Melasta LiPO RC Toys Battery Pack with specification of 11.1 V Voltage, 5000 mAh capacity and 70C Discharge rate.

1. Electrical Characteristics

Nominal Voltage

11.1 V

Nominal Capacity

5000 mAh

Energy

 55.5 Wh

Internal Resistance

 ≤10mΩ

Cycle Life

>100 cycles @Charge 0.5C Discharge:70C, 70%DOD

Months Self Discharge

 <3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @1C

2. Standard Charge

Charge Voltage

12.6 V

Charge Mode

0.5C to 12.6 V, then 12.6 V, charge current to 0.02C5A (CC/CV)

Charger Current

2.5 A

Max. Charge Current

2.0C 5 A

Charge Cut-off Voltage

12.6 V

3. Standard Discharge

Continuous Current

10A

Max. Discharge Current

70C 5A

Discharge Cut-off Voltage

9.0V

4. Environmental

Charge Temperature

0 to 45 (32F to 113F) @60±25% Relative Humidity

Discharge Temperature

-20to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

0 to 40 (32F to 104F) @60±25% Relative Humidity

Water Dust Resistance

/

5.Mechanical

Dimensions (mm.)

L137.0±0.5*W44.0±0.5*T29.0±0.3mm

Weight (g.)

Approx:382±3.0g
