Solar Panel Batteries

Solar Panels

Melasta has a wide range of ready-made solutions for solar panel batteries. Its batteries are the best choice for solar panels energy storage because these batteries can store the maximum level of energy with the ultimate clean energy goals. When you have more power on reliable batteries, you can enjoy more without worrying about electricity cut. Reliable and durable batteries are the most important thing when you are connecting your home, business or critical remote monitoring equipment the energy sources. Melasta provides the high tech solution you can trust for your business, home and critical-missions.

Melasta battery Benefits for Renewable Energy


1. Partial state of charge (PSOC)

A partial state of charge is not a good option for lead-acid batteries. Lead-acid batteries do not perform well when they are not charged correctly. In that case, lithium-ion batteries are the best choice that can perform well even during the Partial state of charge. Melasta batteries can work properly, even in their charging state.

2. Capacity usage compression

Typical Lead-acid batteries are bigger in size but less energy density as compared to Melasta Li-ion batteries. Melasta batteries provide 100% of their rated capacity with a very less self-discharge rate. These batteries have a longer life cycle with high sustainability and reliability.

3. High efficiency

Melasta batteries are highly efficient, with a rate of 99% in respect of charging and discharging. These batteries have little resistance, which helps to charge much faster as compared to the traditional Lead-acid batteries. Lead-acid batteries only can reach the 60% of their capacity and have a meager recharging rate.

4. Longest Life cycle

Melasta has designed its batteries according to the high-tech standards and produces in state of the art factories equipped with the latest technologies. So our batteries’ life is 10 times longer than normal lead-acid batteries. Melasta batteries still provide 80% to 85% of the rated capacity after using the 2000 cycles. So it minimizes the replacement of your batteries for your appliances.

5. Maintenance Free

The best thing about Melasta Li-ion batteries is that they do not need any maintenance, no watering, no corrosion. The self-discharge rate is very low for Melasta batteries; they do not lose their capacity during their idle state; this characteristic can assure the availability of energy whenever you need it.

6. Green Energy

Melasta produces all the batteries according to International safety and green environment standards and does not use any hazardous material which can affect the natural environment. We are proud to provide green energy to the world.

Available Battery Models

Model Number: MB-1220F

Nominal voltage

12.8V

Typical capacity

20Ah

Max charge voltage

14.6V

Discharge cut-off voltage

8.0V

Discharge cut-off voltage

8.0V

Max charge current

20A

Max continuous discharge current

30A

Max pulse discharge current

70A (3S)

Charge temperature

0 - 45

Discharge temperature

-20 - 60

Storage temperature

-10 - 35

Cycle life

@ 100% DOD(25)≥2000

Weight(approx.)

2.9kg

Dimensions

180x76x166mm

Max Support

4Serial-4Parallel Connection

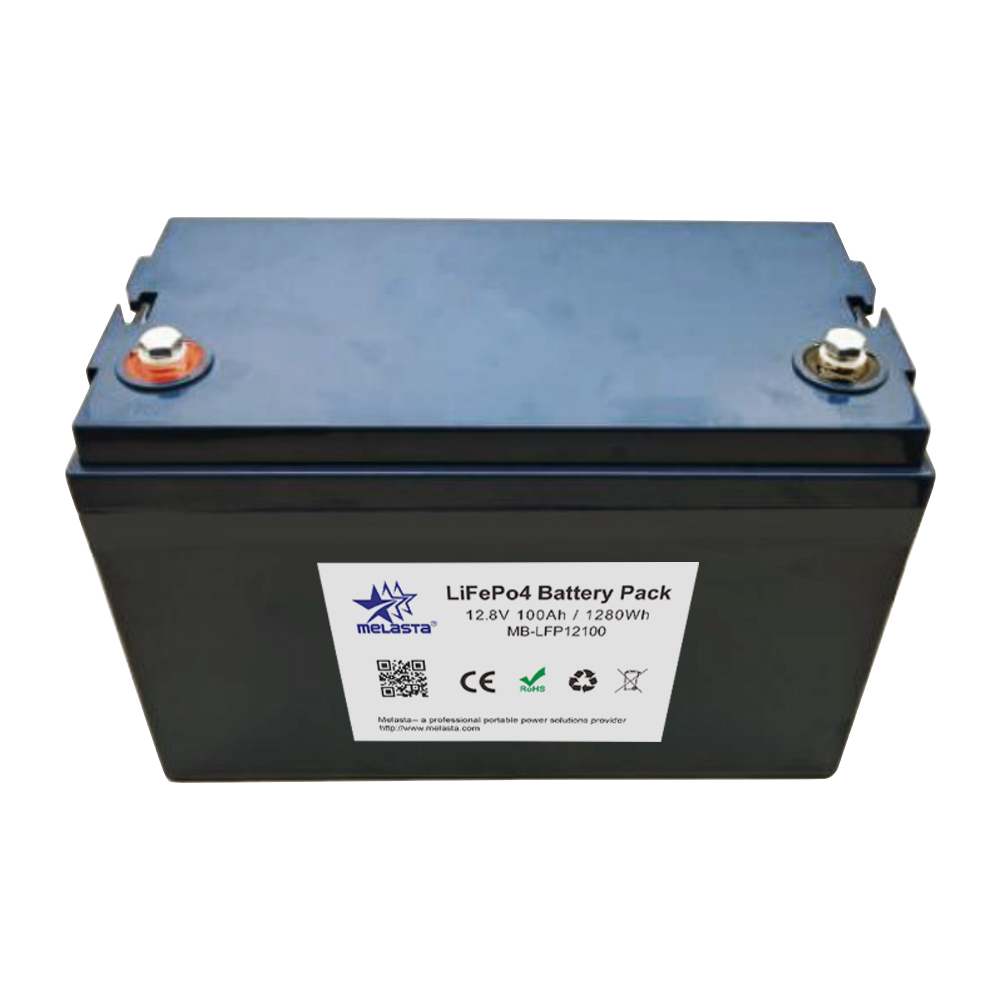

Model Number: MB-12100F

Nominal voltage

12.8V

Typical capacity

100Ah

Max charge voltage

14.6V

Discharge cut-off voltage

8.0V

Max charge current

50A

Max continuous discharge current

100A

Max pulse discharge current

350A (3S)

Charge temperature

0 - 45

Discharge temperature

-20 - 60

Storage temperature

-10 - 35

Cycle life

@ 100% DOD(25)≥2000

Weight(approx.)

12.2kg

Dimensions

318x165x215mm

Max Support

4Serial-4Parallel Connection





Model Number: MB-24100F

Nominal voltage

25.6V

Typical capacity

100Ah

Max charge voltage

29.2V

Discharge cut-off voltage

18.4V

Max charge current

50A

Max continuous discharge current

100A

Max pulse discharge current

350A (3S)

Charge temperature

0 - 45

Discharge temperature

-20 - 60

Storage temperature

-10 - 35

Cycle life

@ 100% DOD(25)≥2000

Weight(approx.)

24.2kg

Dimensions

485x170x245mm

Max Support

4Serial-4Parallel Connection



Model Number: MB-12200F

Nominal voltage

12.8V

Typical capacity

200Ah

Max charge voltage

14.6V

Discharge cut-off voltage

8.0V

Discharge cut-off voltage

8.0V

Max charge current

80A

Max continuous discharge current

100A

Max pulse discharge current

350A (3S)

Charge temperature

0 - 45

Discharge temperature

-20 - 60

Storage temperature

-10 - 35

Cycle life

@ 100% DOD(25)≥2000

Weight(approx.)

25kg

Dimensions

534x207x223mm

Max Support

4Serial-4Parallel Connection





Model Number: MB-12300F

Nominal voltage

12.8V

Typical capacity

300Ah

Max charge voltage

14.6V

Internal Impedance

20mΩ

Discharge cut-off voltage

8.0V

Discharge cut-off voltage

8.0V

Max charge current

80A

Max continuous discharge current

100A

Max pulse discharge current

350A (3S)

Charge temperature

0 - 45

Discharge temperature

-20 - 60

Storage temperature

-10 - 35

Cycle life

@ 100% DOD(25)≥2000

Weight(approx.)

35kg

Dimensions

534x207x223mm

Max Support

4Serial-4Parallel Connection
