Energy Storage System (ESS) Solutions

Melasta Energy Storage System is a dual energy control and storage system that combines solar power from photovoltaic system and another power from grid station. This ESS is a cost efficient solution with built-in energy management system, which includes the inverter for your photovoltaic system. It will reduce the cost of the external devices which needs to convert direct current from your solar plates into alternative current for household appliances. During the night time this system will charge the batteries by using grid station energy. This system is very compact, safe and easy to install.

Melasta Power wall series Advantages

1.Easy to install and maintain

Melasta Energy Storage System(ESS) is a one-stop built in solution for household customers. This system is very easy to install and operate. Due to Its ease of use and installation, it’s very popular in European, US, and Australian market.

2.Automatic Switching Mood

This system work intelligently, it shifts the energy storage mode between grid and solar panel automatically. It makes this system easy to use and cost efficient.  It can store the energy from photovoltaic system during day time and energy from grid station during the night time.

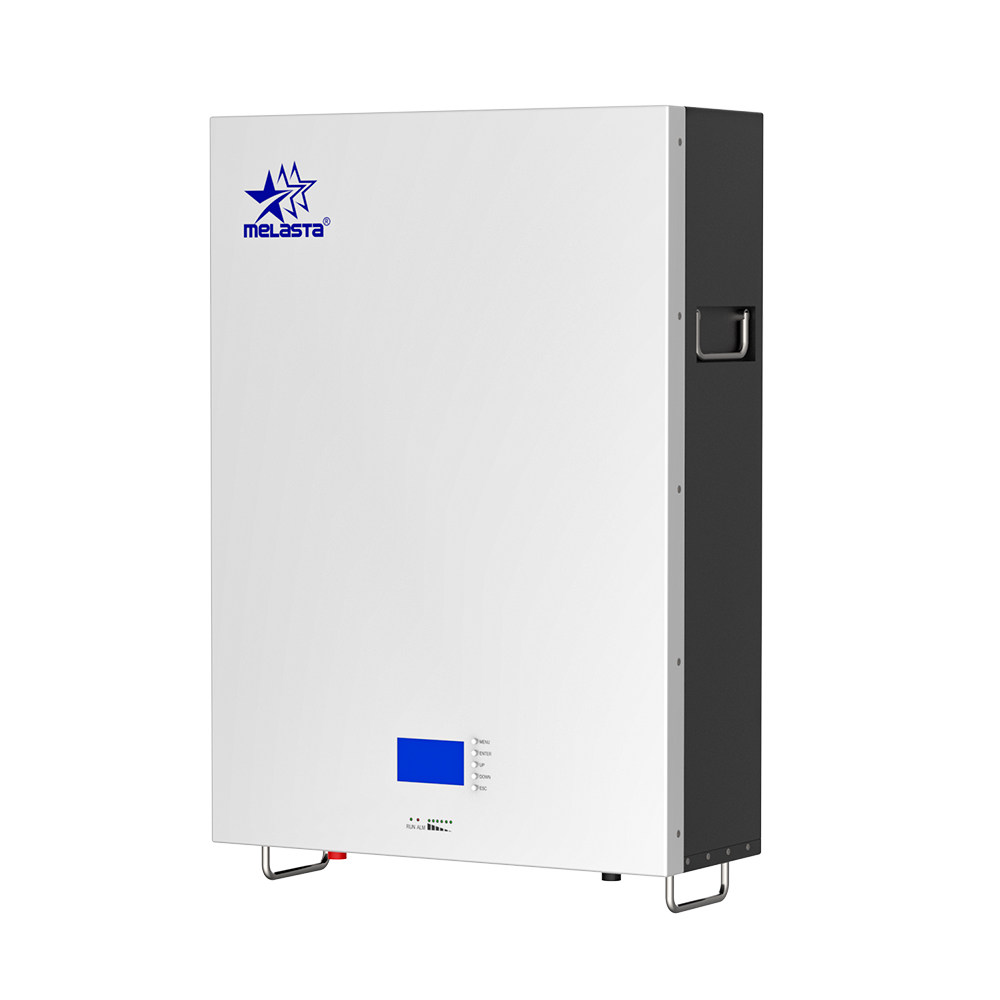

Power Wall Mounted Battery Models

Model

MB-48100-15S

MB-48150-15S

MB-48200-15S -PW1

MB-48100-16S

MB-48150-16S

MB-48200-16S-PW1

Nominal Voltage

48V

51.2V

Rated Capacity

100AH

150AH

200AH

100AH

150AH

200AH

Rated Reserved Energy

4800W

7200W

9600W

5120W

7680W

10240W

Total Charging Cut-off  Voltage

53.3V

56.8V

Max Continuous Charging Current

50A

75A

100A

50A

75A

100A

Cut-off Voltage Of Discharging

42V

44.8V

Maximum Continuous Discharging  Current

100A

Operating Temperature Range

Charging :0~45Discharging :-10~50

Dimension (W×L×H)

485*650*180mm

Weight

≈56KG

≈72KG

≈95KG

≈58KG

≈75KG

≈100KG

Ingress Rating

IP21

Connectivity

RS232/RS485/CANBUS




Power Wall Mounted Battery Models (Different Shape)



Model

MB-24100-8S

MB-24200-8S

MB-4850-15S

MB-48100-15S

MB-4850-16S

MB-48100-16S-PW2

Nominal Voltage

25.6v

48V

51.2V

Rated Capacity

100AH

200AH

50AH

100AH

500AH

100AH

Rated Reserved Energy

2560W

5120W

2400W

4800W

2560W

5120W

Total Charging Cut-off  Voltage

28.4V

53.3V

56.8V

Max Continuous Charging Current

50A

100A

25A

50A

25A

50A

Cut-off Voltage Of Discharging

22.4V

42V

44.8V

Maximum Continuous Discharging  Current

100A

Operating Temperature Range

Charging :0~45Discharging :-10~50

Dimension (W×L×H)

485*510*180mm

Weight

≈35KG

≈58KG

≈33KG

≈56KG

≈35KG

≈58KG

Ingress Rating

IP21

Connectivity

RS232/RS485/CANBUS
